TRUVU Aquariums

TRUVU IRS Overflow Return Plumbing Kit

$65.99
  • Ships via UPS.
  • Calculated at checkout.
  • Usually ships in 1 to 3 business days.

Shipping policy

Tubing Length
Tubing Length: 8"

2-Year Warranty

Installation Instructions: IRS Overflow Return Kit assembly instructions (PDF + step-by-step)

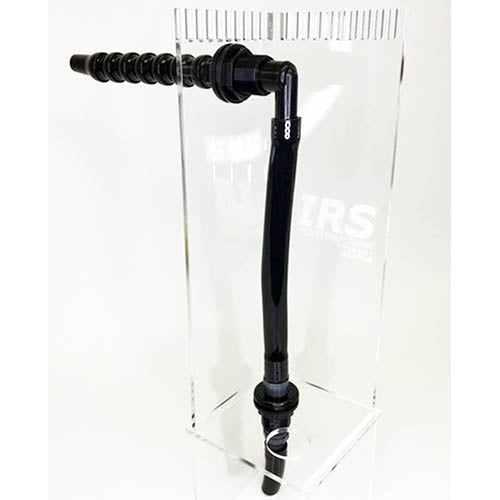

Aquarium and overflow box sold separately. Photos show the kit installed in a TRUVU acrylic overflow box for size and fit reference.

The TRUVU Integrated Return System (IRS) Overflow Return Plumbing Kit routes water from your sump return pump back into the aquarium through the overflow box—a clean, sealed return path for freshwater and saltwater tanks with a drilled overflow.

Pick the tubing length that matches your aquarium height (8"–30"). Each kit includes 3/4" bulkheads, hose-barb fittings, vinyl tubing, and a 3/4" directional round nozzle so you can aim return flow where you want it. Compatible with VCA Random Flow Generator nozzles as an upgrade.

Requirements: Two holes in the overflow box for 3/4" bulkheads—one in the bottom and one just below the skimming teeth. Drill diameter for those bulkheads is 1-1/2".

What’s included

  • 2 × 3/4" slip × hose barb straight fittings
  • 1 × 3/4" slip × slip bulkhead
  • 1 × 3/4" slip × hose barb elbow
  • 1 × 3/4" thread × slip bulkhead
  • 1 × 3/4" NPT connector
  • 1 × 3/4" flexible hose segment (6")
  • 1 × 3/4" round nozzle
  • 1 × length of 3/4" vinyl tubing (choose 8", 12", 16", 18", 20", 24", or 30")
  • Aquarium and overflow box not included.

Note: Extra aquarium tubing from the pump to the lower hose barb is not included. Use flexible 3/4" ID aquarium tubing for that run so pump vibration is absorbed—do not hard-plumb the full return line.

How to choose tubing length

Match the kit’s vinyl tubing length to the height of your aquarium (the vertical run inside the overflow). When in doubt, choose the next length up.

FAQ

Is this for drain or return?
Return only. It returns sump water through the overflow box; it is not an overflow drain kit.

Freshwater or saltwater?
Both. Use it on TRUVU (or other) aquariums that have an overflow box with the two required bulkhead holes.

Where are the instructions?
Full PDF and step-by-step photos are on our IRS Overflow Return Kit instructions page. More guides: Manuals & Instructions.

Assembled in Arizona by TRUVU Aquariums.

Pairs well with

Product Features

Returns sump water through the overflow — sealed path, no bulkhead through the tank wall

Full 3/4" system with aimable nozzle; tubing lengths 8"–30" to match aquarium height

Freshwater & saltwater · Assembled in Arizona · 2-year warranty
